CNC Laser module with air assist cutter™
CNC Laser module with air assist cutter™
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE
Hign-concerned Chemical: None
Input Voltage: 12V / 24V
Item 1: Woodworking Tools
Item 2: CNC Accessories
Item 3: Laser Engraving Machine
Item 4: Laser Cutter
Item 5: Laser Engraving Head
Main Application: Laser Engraving, Laser Cutting
Material: Aluminum Alloy, Plastic, Copper
Model Number: 40W / 80W
Origin: Mainland China
Size: 45*35*145mm
Wavelength: 450nm
Laser Engraving/Cutting Machine
(click on the image below to view details)
AENBUSLM 40W 80W Laser Cutting Module 450mm Blue Light Laser Engraving Head with Air Assist Woodworking CNC Laser Machine
Frequently Question
Question: Is this laser module suitable for my laser machine?
Answer:
1. Our laser module socket is compatible with a plug with 3 pin wires. As long as it can be plugged into the socket of the laser module, it can be powered on. We will give away 3 connecting cables with different interfaces.
2. In addition, for the laser module with a power of 80W, the main board power supply of the laser machine is preferably 12V 5A / 24V 5A, minimum 12V 3.5A / 24V 3.5A, so as to maximize the power of the laser module.
3. If the laser machine is below 12V 5A / 24V 5A, there are also methods to maximize the power of the laser module (for specific methods, please contact our customer service personnel for answers)
4. Laser module with a power below 80W do not have special requirements for power supply. Such as 40W.
Connection and Switching
40/80W Fixed Focus
The newly upgraded 80W power is strong, and the engraving speed is 6-7 times faster than traditional laser modules. The stainless steel engraving effect is better.
The accuracy of laser engraving is 3-4 times that of traditional laser modules, with faster, more accurate and precise conversion.

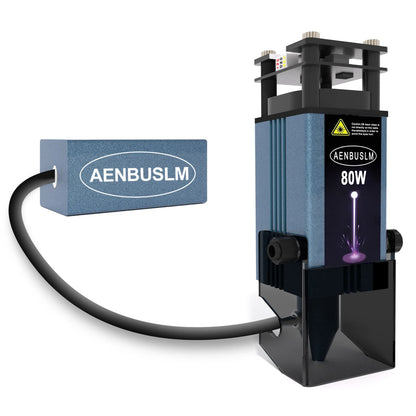

80W Fixed Focus Features
1. High Quality Materials: laser module, durable aluminum alloy shell, fast engraving speed, low power consumption, good stability, long working life;
2. Work Efficiently: easy-to-use, flexible, fast, clear, efficient, and high-precision engraving;
3. With Air Assist: with air nozzle to get clean-out edges, improve cutting performance;
4. Strong Skills: able to engrave metal, wood, leather, rubber, acrylic, etc., as well as cut wood and acrylic (power determines skill);
5. Super Cutting Ability: pine wood 20mm（15mm one pass）; Basic plywood 10mm(one pass); Black acrylic 10mm(7mm one pass);
6. Protective Cover Design: with a laser protective cover, it can effectively filter blue light when engraving or cutting with this laser head;
7. Wide Application Range: used in conjunction with laser cutting machines, laser engraving machines, CNC engraving machines, DIY lasers, etc., compatible with most recording programs;
8. Easy to Assemble: small, compact, cable length is 28 cm, convenient and easy to install.
Parameter:
1. Laser Effect Power: 80W
2. Laser Optical Power: 10W
3. Size: 45*35*145mm
4. Wavelength: 450nm
5. Input Voltage: 12V / 24V
6. Power Supply Current: 3.5A - 5A
7. Working Life: 20000 hours
8. Power Control: PWM/TTL (0-5V signal control)
9. Interface Specification: 3pin 2.54 / 4pin 2.54
10. Light Color: Semiconductor blue light
11. Material: Aluminum Alloy + Plastic + Copper
Package List 1:
1*laser engraving head
1*3pin cable; 1*4pin cable; 1*DC short cable
1*protective glasses(random color)
1*fixed focus column
1*focus lens
Package List 2:
1*laser engraving head
1*3pin cable; 1*4pin cable; 1*DC short cable
1*fixed focus column
1*laser lens
1*air pump
1*inflation tube
1*charing cable
1*accessories
Notice:

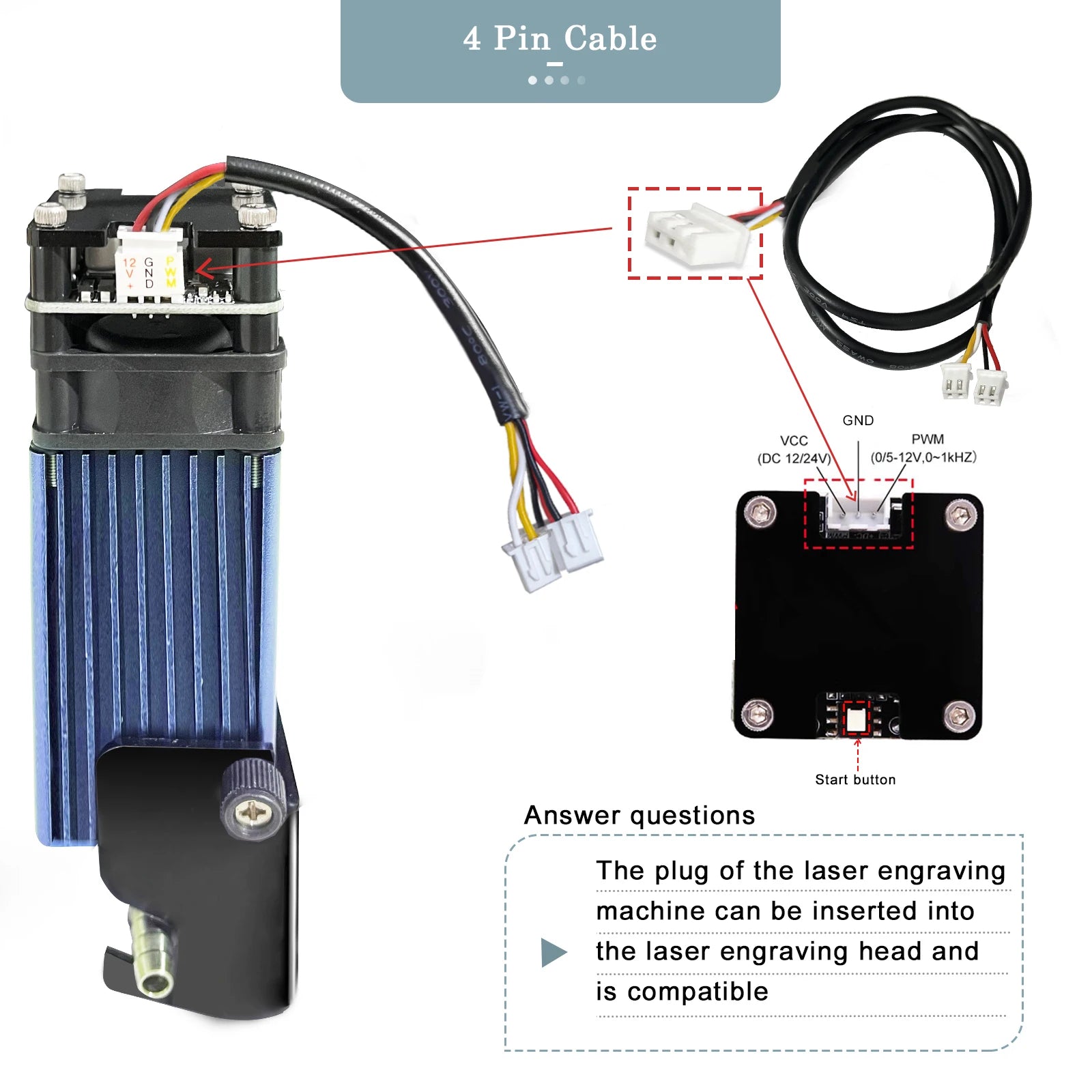

1. Pay Attention to Line Sequence: 3pin: 12V / 24V + red line, GND-black line, PWM+yellow line; 4pin: 12V / 24V + red line, 12V / 24V -black line, TTL+yellow line, TTL-white line;
2. Can Be Engraved: 201/304 stainless steel, titanium steel and anodized aluminum oxide, stone, MDF, light wood, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc;
3. Can Not Engrave: copper raw materials, aluminum raw materials, steel raw materials;
4. Cutting Materials: plywood, black acrylic, leather, paper, etc;
5. Engraving instructions: Engraving reflective objects must be painted black before engraving; otherwise, the reflected light can easily damage the focus lens.
40W Fixed Focus Features:
1. High Quality Materials:laser module, durable aluminum alloy shell, fast engraving speed, low power consumption, good stability, long working life;
2. Work Efficiently:easy-to-use, flexible, fast, clear, efficient, and high-precision engraving;
3. With Air Assist:with air nozzle to get clean-out edges, improve cutting performance;
4. Strong Skills:able to engrave metal, wood, leather, rubber, acrylic, etc., as well as cut wood and acrylic (power determines skill);
5. Super Cutting Ability: 40W: pine wood 10mm; Basic plywood 5mm; Black acrylic 5mm; 80W: pine wood 20mm（15mm one pass）; Basic plywood 10mm(one pass); Black acrylic 10mm(7mm one pass);
6. Protective Cover Design:with a laser protective cover, it can effectively filter blue light when engraving or cutting with this laser head;
7. Wide Application Range:used in conjunction with laser cutting machines, laser engraving machines, CNC engraving machines, DIY lasers, etc., compatible with most recording programs;
8. Easy to Assemble:small, compact, cable length is 28 cm, convenient and easy to install.
Parameter:
1. Laser Effect Power: 40W
2. Laser Optical Power: 5.5W
3. Size: 45*35*145mm
4. Wavelength: 450nm
5. Input Voltage: 12V / 24V
6. Power Supply Current: 4A
7. Working Life: 20000 hours
8. Power Control: PWM/TTL (0-5V signal control)
9. Interface Specification: 3pin 2.54 / 4pin 2.54
10. Light Color: Semiconductor blue light
11. Material: Aluminum Alloy + Plastic + Copper
