AlgoLaser 2W-20W Engraver for Wood & Metal™

AlgoLaser 2W-20W Engraver for Wood & Metal™

Regular price $369.60
Regular price $334.61 Sale price $369.60
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

Adds-on Parts: Rotary roller, Raiser Feets, Honeycomb platform, Air pump

Brand Name: AlgoLaser

Certification: CE,ce

Computer OS: Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn)

Control Mode: PWM

Engraving Area: Other

Engraving Speed: 0-12,000MM/Min

Engraving area: 400x850mm

Frame Materials: ALL Aluminum Profile

Hign-concerned Chemical: None

Input Format: BMP, JPG, PNG, NC, DXF, SVG, etc.

Is Smart Device: YES

Laser Power: Other

Luminous Power: 2 5 10 20

Model Number: AlgoLaser DIY KIT

Origin: Mainland China

Software: LaserGRBL (free), LightBurn (Paid Software), Wifi APP

Warehouse Available: Brazil, Mexico, Russian, Euro, United States, China



AlgoLaser Laser Engraver 2W 5W 10W 20W Output Laser Cutter Engraver for Wood and Metal /Emergency Stop Flame & Gyro Detectio

Features:

Motherboard:ALGOLASER_DIY_KIT_V1.2

With Expand kits Engraving area :400*850mm(need to order separately)

Control Software:LaserGRBL (free), LightBurn (Paid Software), Wifi APP

Safety Precautions:

Machine Offset Detection and Protection

Machine Tilt Detection and Protection

USB Connection Detection and Protection

Beam detection and protection

Current and Voltage Detection and Protection

Emergency Stop Switch

Key Lock

Frame Materials:Aluminum Profile

Motors:NEMA 42 Stepper Motors

Mechanical Precision:Y:12.5um,X:12.5um

Pixel Accuracy:Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy)

Engraving Area:X400mm*Y400mm

Luminous Power:2W/5W/10W/20W

Wave Length:445±5nm

Control Mode:PWM

Power Rate:S0-S1,000

Engraving Speed:0-12,000MM/Min

Baud Rate:115200 - 921600 (Default: 115200)

Computer OS:Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn)

Control Softwares:LaserGRBL (free), LightBurn (not free), Wifi App

Input Format:BMP, JPG, PNG, NC, DXF, SVG, etc.

Available Materials of Engraving:Wood, Paperboard, Black Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc.

Available Materials of Cutting:Paper Board, KT Board, Felt Cloth, Leather, Thin Plywood, Thin Black Acrylic, etc.

Input Voltage:110V-240V (Compatible)

Power Adapter Output:24V / 3A

Operating Temp.:-20℃-50℃

Features:

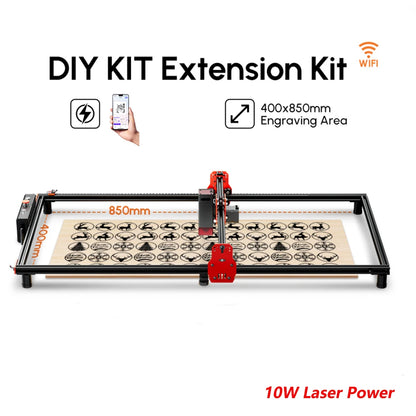

  • 【850mm*400mm Large Working Area 】Only need to replace the AlgoLaser DIY KIT Y-axis, the working area can be quickly expanded from 400mm*400mm to 400mm*850mm, no need to change the file size, to meet the one-time large-area cutting and engraving.

  • 【Exquisite Engraver】Our Engraver is equipped with an advanced LD+FAC+C lens that can emit a tiny 0.06mm of light spot. To support you in completing more exquisite artwork. That is a surprise gift for family and friends who love crafting.

  • 【Sturdy & Stable】All-metal made body, weight up to 7 lbs, with the 8mm steel rail and dual stepper motors ensure stability in high-speed movement. A built-in leveler prevents losing balance, It is also set for measuring whether the machine is properly placed.

  • 【Various Materials and Software Supported 】The Faclon laser cutter and engraver machine can be used for hundreds of materials. The machine can engrave on plywood, hardwood, metal, leather, glass, paper, dark acrylic, fabric, and more. Also, it can be used to cut wood, paper, leather, black acrylic, etc. Besides, 1000+ projects and 500+ elements Support Lightburn for Windows XP, 7/8/10/11, Mac OS, and Linux.The Creality laser engraver andcutter can be compatible with LaserGRBL (free), LightBurn (paid)and Creality Faclon Design Space(free, designed by Creality)

  • 【Super easy to Connect】:The DIY KIT laser engraver supports 2.4G WiFi and USB-C connections. For beginners, LightBurn, and LaserGRBL software provide easy access to offline control and engraving. Use the smartphone app (AlgoLaser) for effortless creativity without a computer.

  • 【Work Higher Productivity】 The laser engraver provides 2W 5W 10W 20W laser power option.Easy to engrave on a wide variety of materials, including cutting paper, plastic, acrylic, urethane foam, and most consumables such as metal, glass etc.


How to Select laser module from 2W 5W 10W 20W?

💎DIY KIT 2W can do excellent engraving on wood/leather, can not do cutting!

💎DIY KIT 5W can do both engraving and cutting well, 3-9mm plywood/3-8mm acrylics.

💎DIY KIT 10W with air assist nozzle, can do both engraving and cutting well, cut through 3-30mm black acrylic, 2-20mm pine wood, 3-5mm MDF.

💎DIY KIT 20W with air assist nozzle/air pump, can do both engraving and cutting well, cut through 3-45mm black acrylic, 2-30mm pine wood, 3-12mm MDF. If you want to mark on stainless steel, suggest 20W to order.


FAQ:
About AlgoLaser Official Store

Welcome to AlgoLaser Official Store, we dedicated to offering you laser engraving machines with Fast Delivery, Reliable Quality and Affordable Price.  We have lots of inventory in Russian, Czech republic, Spain, United States, Brazil, Mexico and China warehouse, about 3-7 Business Days Fast & Free Shipping. And we are original AlgoLaser original manufacturer in Shenzhen, China, you could rely on us for the consistent quality and service!

About Tax:
Most countries we ship the parcel for free shipping, but we do not cover any tax and duty!
About customs charging fee . no body can control, every country has different Import and export tariff system.
About Maintenancece:
All products have12 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. Usually we do not accept return. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
About delivery:
we need 1-3 days handle order in factory when payment received. As normal, it needs 5-7 days update first tracking and 15-60 days for delivery. If you do not receive the goods as promised,pls feel free to contact us before opening a dispute or leaving us a negative feedback.We would reply you within 24 hours and provide the best solution. If the parcel confirmed lost during transportation, we will give you a full refund or resend the item without any extra fees

Notice:
● Please wear goggles when operating the laser engraver. Wear safety goggles to avoid blindness.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
● This product is not recommended for industrial cutting due to its high engraving speed.
